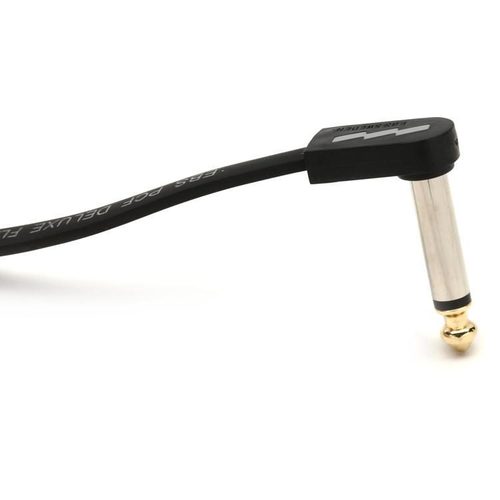

EBS PCF Deluxe Flat Patch Cable
$
8
.95
CBL-EBS-DL
The EBS PCF Deluxe Flat Patch Cable is an original design by EBS that started the global trend of flat patch cables for pedalboards and otherwise. The cables have now become the standard for space-saving design and clean signal paths. If you have ever struggled with limited space on your pedalboard, the super compact and affordable EBS Flat Patch Cables will help end the frustration. They perform excellently on sound and flexibility while reducing the required space between pedals to a minimum by their unique design.
The new PCF Deluxe series is the second implementation of improvements since the original design. It remains the most affordable among EBS flat patch cables.
- Available in three lengths to cover your needs; 10cm (3.9in), 18cm (7.1in), and 28cm (11in).
- 30% reduced size contact housing.
- 24K Gold Plated tip of the contacts for best performance.
- Flat patch cables.
- Copper conductors.
- Double-shielded cables and very low resistance keep your signal path clean and strong all the way through the pedalboard.
- Very compact size and flexible cables ensure effective use of ALL space on your pedalboard.
- This product has no reviews.
- Conductor: Flexible copper conductor low voltage audio signal system
- Operating Temperature: -15ºC to +70°C
- Outer Insulation: PVC (Polyvinyl Chloride)
- Signal Copper Cores: 20 x 0.12mm
- Signal Insulation: PE (polyethylene)
- Copper Twisted Shield: 38 x 0.12mm
- Capacitance Cond./Shield: < 10 pF/decimeters
- Conductor Resistance: < 10 mOhm/decimeters
- Dimensions: 6 x 3 mm (rectangular cable)
22 x 11.5 x 5.7 mm (contact house) - Connectors: ¼" 90 degrees angled audio plug
