Elekit TU-8200 Optional DAC Module PS-3249

DIY-PS-3249

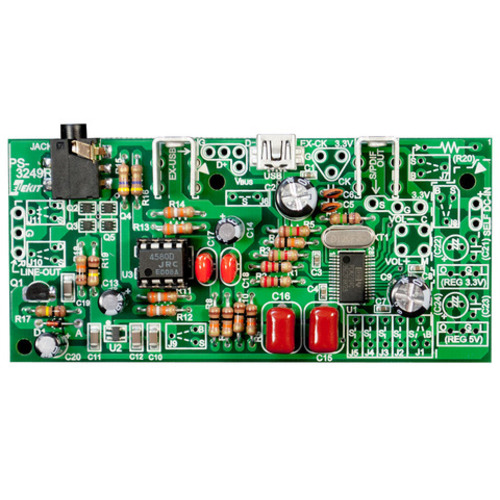

This module converts the digital signal of sound from PC to analog. Just connect the module to the USB terminal of your PC, then it is automatically recognized - no need for installation.

This module is designed to be used with the Elekit 8200.

Please Note: The instructions for this product are entirely in Japanese - Please do not order this unless you either know what you are doing, or you know how to read Japanese.

Customers Who Viewed This Item Also Purchased...

    Please Log In or Sign Up to leave a review of this product.


    Great kit... The DAC sounds amazing with the TU-8200. There is a decent color image of the completed circuit board included. I cannot read Japanese, but I built my kit to look like the picture and it sounds beautiful. Elekit has outstanding customer service as well.



    reviewed by: Ivan

    Thank you! Fast shipping and very nice kit! Needed language help with instructions but was a breeze to put together. Thanks again,

    Mike



    reviewed by: Mike

    Very fast delivery! Good quality kit! Had to get help to read instructions but assembly was easy. Thanks again!

    Mike



    reviewed by: Mike
• Power supply system: USB power

• Operation system: Windows XP or higher, Mac OS X or higher

• USB: 1.1 or 2.0

• Sampling rate: 32kHz, 44.1kHz, 48kHz

• DAC resolution: 16bit

• Output distortion rate: 0.014% (USB bus power)

• Frequency response: 10Hz-22.5kHz (1kHz)

• PCB size: 97x45mm

* The USB input terminal of this module is USB Mini-B. Check the USB terminal of your PC as well. Please prepare a wire with corresponding terminal.

PS-3249 allows the following extensions.

• Change the power supply system from USB bus power to self-power system to supply external power.

• Addition of volume control switch - to enable control of the PC volume from the module by adding a push switch.

• Connection of external clock - Connection of an oscillator with less jitter
